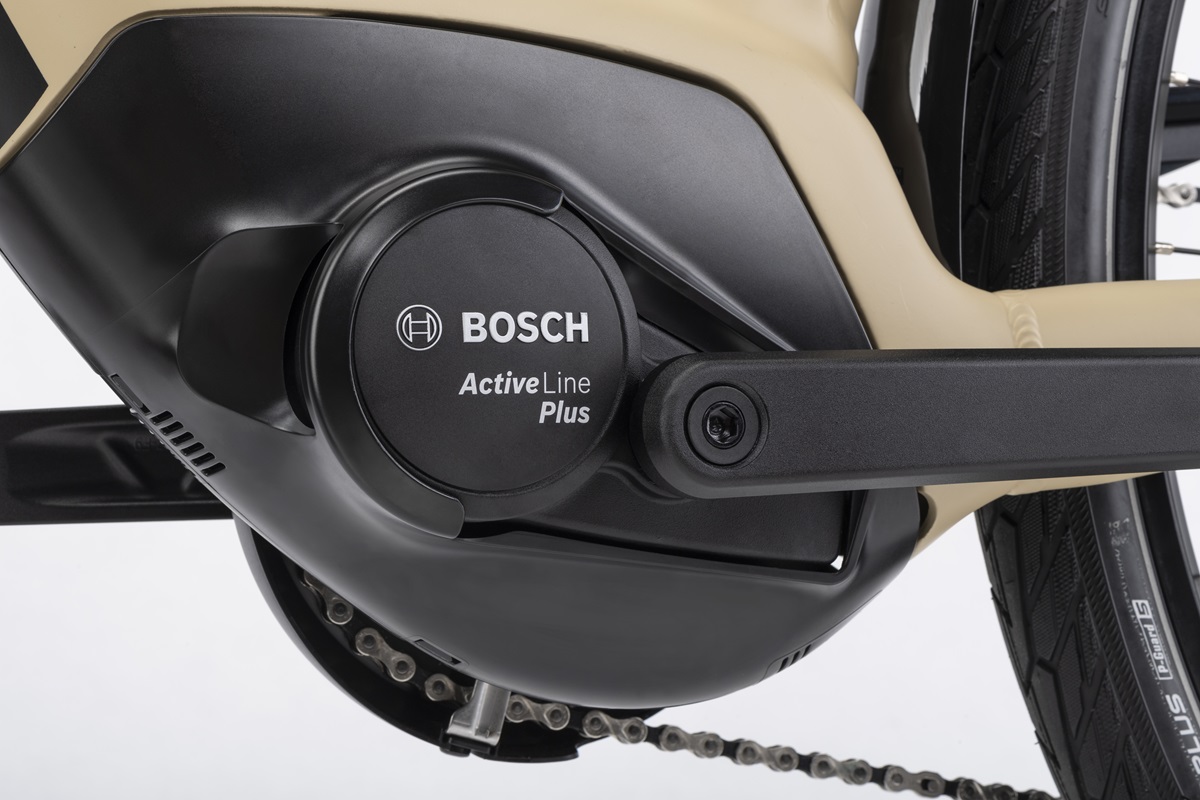

Engine
Bosch, Active Plus, 250 W, 50 Nm, 25 km/h
Display
Bosch, Intuvia
Battery
Bosch, PowerTube, 500 Wh
Frame family
Winora, Aluminium 6061, GCOPD, THT, Aluminium 6061
Fork
SR Suntour, NEX E25, Steel spring, 63 mm travel, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
Crank arm
Winora, forged, Aluminium
Brake (front)
Shimano, MT200, 2-piston disc brake
Brake (rear)
Shimano, MT200, 2-piston disc brake
Tube
Dunlop valve
Rim
Ryde, Eco21, With Eyelets, Double Wall, Aluminium
Clamping ring
quick release, Quick release, 34.9 mm
Rear derailleur
Shimano, Alivio M3100
Shift lever
Shimano, Alivio M3100, Trigger switch
Bottom bracket
integrated in the motor
Chain guard
SKS, Chainbow-E 38T
Sprocket
Shimano, HG200, 11 - 34 teeth
Chain
KMC, e9S
Chainring
Samox, 38 teeth
Brake lever
Shimano, MT201, Aluminium
Brake disc (front)
Shimano, RT30-M, 180 mm
Brake disc (rear)
Shimano, RT30-S, 160 mm
Tyre
Schwalbe, Road Cruiser, 50-622, 28 x 2.0 inch
Front wheel hub
Shimano, TX505, Centerlock
Rear wheel hub
Shimano, TX505-8, Centerlock
Spokes
Stainless spokes
Handlebar
Ergobar, oversize, 640 mm
Grips
XLC, Comfort bo3
Stem
aluminium, angle ajustable, A-head, 31.8 mm
Headset
Feimin, A-Head Tapered, Ball bearing
Saddle
Selle Royal, Wave
Seat post
XLC, Aluminium, Patent suspension, 31.6 mm
Pedals
VP, E461, Aluminium, with Reflector
Headlight
Herrmans, H-Black MR-GO
Rear light
AXA, Juno Ebike
Dynamo
via system battery
Carrier
system carrier, 25 kg
Fenders
Eurofender, Tempo, Chromoplastics
Stand
Ursus, Mooi, Rear stand
